Details

Stock Code

SOSOFCM200090

Description

ZFS SO SSHS: 20MM X 90 X M16

Category

SOKO

Finish

ZINC FLAKE SILVER >1000HRS

Product

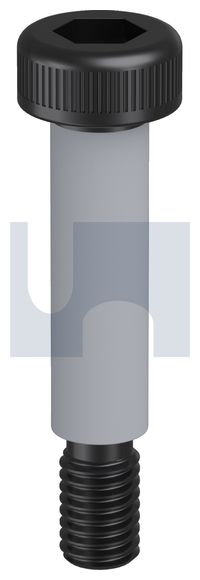

SOCKET HEAD SHOULDER SCREW

Size

M16

Specification

ISO 7379 H8 / CLASS 012.9

Length / Dimension

20mmX9

Thread

M16-1.50 FINE x 17.5mm Thread length on older stock may vary

Documents

Product Finish Comparison

Hobson Soko Product Guide

Zinc Flake Coating

Packaging

INNER
QTY: 10
137 x 110 x 85 mm

Barcode: 9350629138754

OUTER
QTY: 30 (3 x INNER)
300 x 150 x 125 mm

Barcode: 9350629138761

PALLET
QTY: 2,400 (80 x OUTER)
1200 x 800 x 650 mm

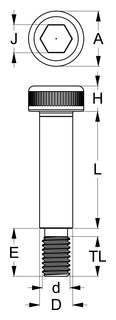

Dimensions

D	20	mm
d	16	mm
TL	17.6	mm
J	10	mm
L	90	mm
E	22.4	mm
A	30	mm
H	14	mm
